Roller Shutter Aluminum Tube Series
Round, ribbed and octagonal tubes plus drive rods for roller shutters
Product Gallery
Series Overview
Roller shutters include electric, bead and spring types, with a clean appearance and firm, durable structure — ideal for offices, hotels, restaurants and large glass curtain walls.
Products & Specifications
| Image | Model | Name | Thickness | Dimensions | Available Colors | |
|---|---|---|---|---|---|---|
 | G100185 | Ø85 Tube | 1.2 mm | Ø85 mm | — | |
 | G100263 | Ø63 Tube | 1.3 mm | Ø63 mm | — | |
 | G100355 | Ø55 Tube | 1.1 mm | Ø55 mm | — | |
 | G100735 | Ribbed Tube | 0.5 mm | Ø45 mm | — | |
 | G100450 | Ø50 Tube | 1.1 mm | Ø50 mm | — | |
 | G100640 | Ø40 Tube | 1.0 mm | Ø40 mm | — | |
 | G101038 | Ribbed Tube | 0.6 mm | Ø38 mm | — | |
 | G101138 | Ribbed Tube | 1.0 / 1.2 / 2.0 mm | Ø38 mm | — | |

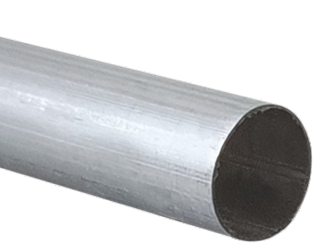

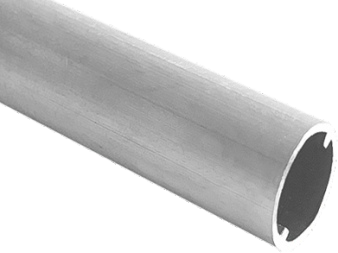

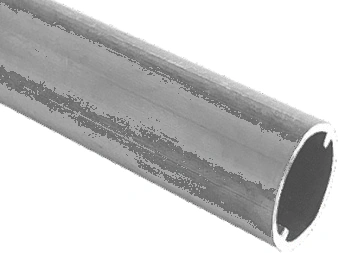

 | G101638 | Ø38 Tube | 0.4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.2 mm | Ø38 mm | — | |

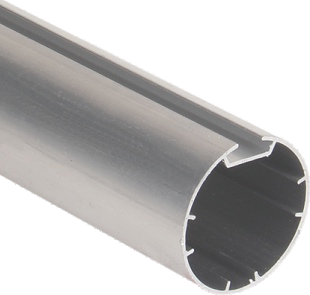

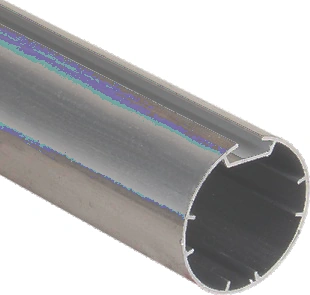

 | G1012 | Ø28 Tube | 0.4 / 0.45 / 0.5 / 0.6 / 0.8 / 1.0 mm | Ø28 mm | — | |
 | G102117 | Round Tube | 0.5 mm | Ø17 mm | — | |

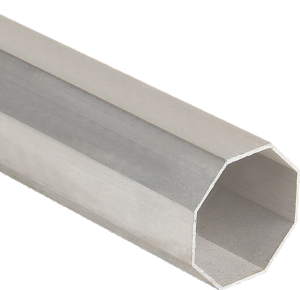

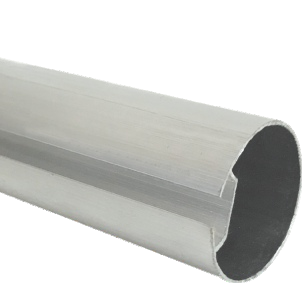

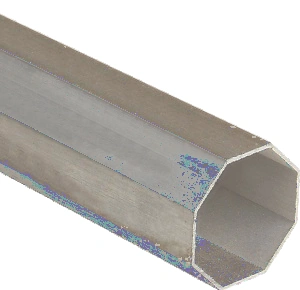

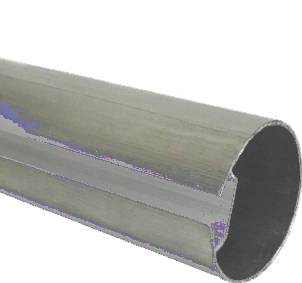

 | G1022 | Octagonal Tube | 0.8 mm | — | — | |

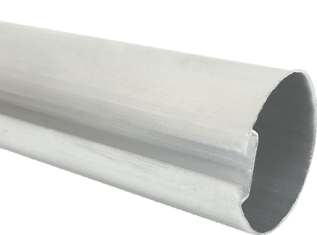

 | G1009 | Double-Open Tube | 0.6 / 0.8 / 1.0 mm | Ø38 mm | — | |

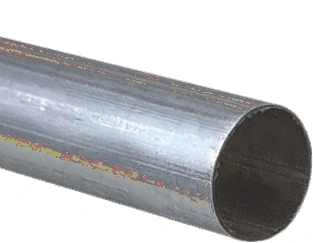

 | G105 | Ø38 Tube | 1.2 mm | Ø38 mm | — | |

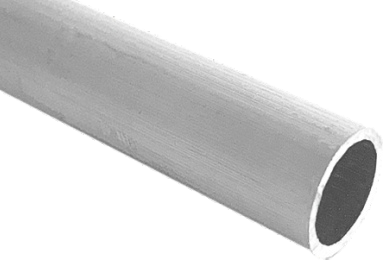

 | — | Drive Rod | 1.0 mm | Ø16.2 mm | — | |

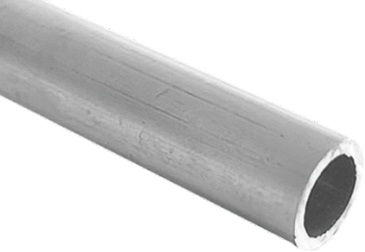

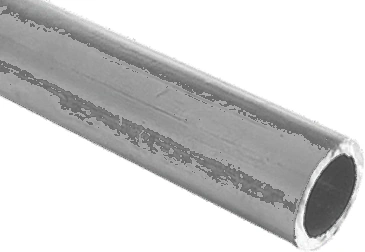

 | — | Large Cloth Support Rod | 0.8 mm | Ø13.39 mm | — | |

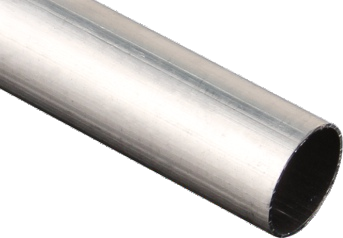

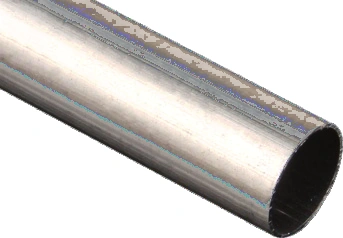

 | — | Small Cloth Support Rod | 0.5 mm | Ø13.3 mm | — | |

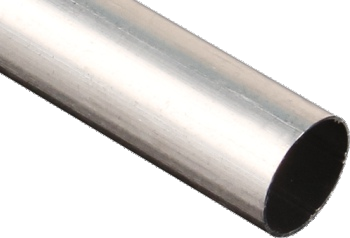

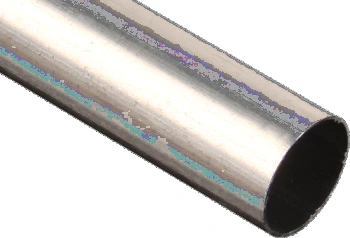

 | — | I-Beam Rod | 0.6 mm | Ø19.8 mm | — | |

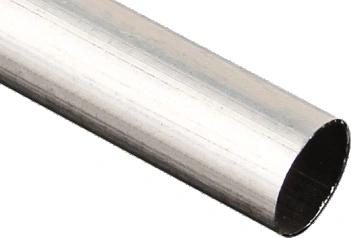

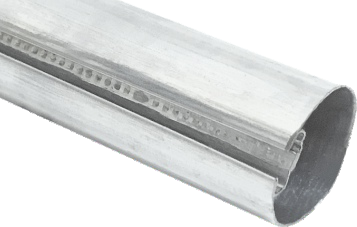

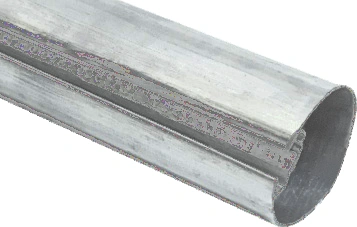

 | G1009 | Color-Steel Roller Tube | 0.5 mm | Ø28 mm | — | |
 | G1010 | Color-Steel Roller Tube | 0.5 mm | Ø38 mm | — |
Note: colors shown are for reference only; please refer to the actual product.
Custom production available (overseas & domestic; bulk color customization). Mold making service available.
